Real

This example shows how to use the pylops.basicoperators.Real operator. This operator returns the real part of the data in forward and adjoint mode, but the forward output will be a real number, while the adjoint output will be a complex number with a zero-valued imaginary part.

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.gridspec as pltgs

import pylops

plt.close('all')

Let’s define a Real operator \(\mathbf{\Re}\) to extract the real component of the input.

M = 5
x = np.arange(M) + 1j * np.arange(M)[::-1]
Rop = pylops.basicoperators.Real(M, dtype='complex128')

y = Rop*x
xadj = Rop.H*y

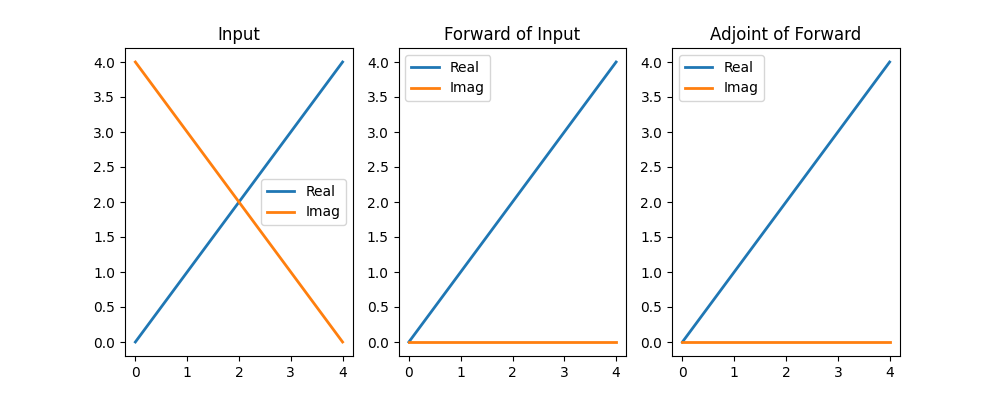

_, axs = plt.subplots(1, 3, figsize=(10, 4))
axs[0].plot(np.real(x), lw=2, label='Real')
axs[0].plot(np.imag(x), lw=2, label='Imag')
axs[0].legend()
axs[0].set_title('Input')
axs[1].plot(np.real(y), lw=2, label='Real')
axs[1].plot(np.imag(y), lw=2, label='Imag')
axs[1].legend()
axs[1].set_title('Forward of Input')
axs[2].plot(np.real(xadj), lw=2, label='Real')
axs[2].plot(np.imag(xadj), lw=2, label='Imag')
axs[2].legend()
axs[2].set_title('Adjoint of Forward')

Out:

Text(0.5, 1.0, 'Adjoint of Forward')
