Conj¶
This example shows how to use the pylops.basicoperators.Conj
operator.
This operator returns the complex conjugate in both forward and adjoint
modes (it is self adjoint).
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.gridspec as pltgs
import pylops
plt.close('all')
Let’s define a Conj operator to get the complex conjugate of the input.
M = 5
x = np.arange(M) + 1j * np.arange(M)[::-1]
Rop = pylops.basicoperators.Conj(M, dtype='complex128')
y = Rop*x
xadj = Rop.H*y

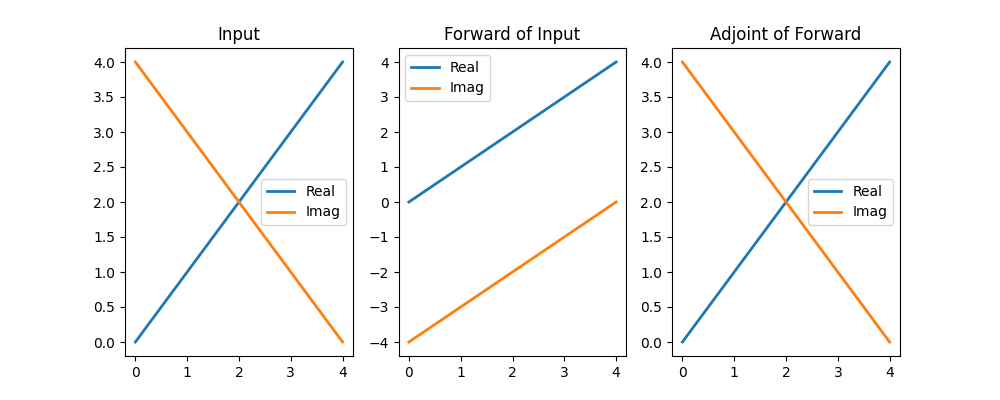

_, axs = plt.subplots(1, 3, figsize=(10, 4))
axs[0].plot(np.real(x), lw=2, label='Real')
axs[0].plot(np.imag(x), lw=2, label='Imag')
axs[0].legend()
axs[0].set_title('Input')
axs[1].plot(np.real(y), lw=2, label='Real')
axs[1].plot(np.imag(y), lw=2, label='Imag')
axs[1].legend()
axs[1].set_title('Forward of Input')
axs[2].plot(np.real(xadj), lw=2, label='Real')
axs[2].plot(np.imag(xadj), lw=2, label='Imag')
axs[2].legend()
axs[2].set_title('Adjoint of Forward')
Out:
Text(0.5, 1.0, 'Adjoint of Forward')
Total running time of the script: ( 0 minutes 0.266 seconds)
