16. CT Scan Imaging

This tutorial considers a very well-known inverse problem from the field of medical imaging.

First, we will be using the pylops.signalprocessing.Radon2D operator to model a sinogram, which is a graphic representation of the raw data obtained from a CT scan.

Note that whilst we can twick the Radon2D operator to work in a CT-like style, this has initially been designed with other applications in mind (i.e., seismic). We will see that if we use pylops.medical.CT2D the produced sinogram will be very similar in the middle (horizontal and near horizontal lines) but it will greatly differ at both end (vertical and near vertical lines). The latter lines are in fact not easy to parametrize using the convention chosen in Radon2D.

The sinogram created by the pylops.medical.CT2D operator is further inverted using both a L2 solver and a TV-regularized solver like Split-Bregman.

import matplotlib.pyplot as plt

# sphinx_gallery_thumbnail_number = 2
import numpy as np
from numba import jit

import pylops

plt.close("all")
np.random.seed(10)

Let’s start by loading the Shepp-Logan phantom model. We can then construct the sinogram by providing a custom-made function to the pylops.signalprocessing.Radon2D that samples parametric curves of such a type:

\[t(r,\theta; x) = \tan(90°-\theta)x + \frac{r}{\sin(\theta)}\]

where \(\theta\) is the angle between the x-axis (\(x\)) and the perpendicular to the summation line and \(r\) is the distance from the origin of the summation line.

@jit(nopython=True)
def radoncurve(x, r, theta):
    return (
        (r - ny // 2) / (np.sin(theta) + 1e-15)
        + np.tan(np.pi / 2.0 - theta) * x
        + ny // 2
    )


x = np.load("../testdata/optimization/shepp_logan_phantom.npy").T
x = x / x.max()
nx, ny = x.shape

ntheta = 151
theta = np.linspace(0.0, np.pi, ntheta, endpoint=False)

RLop = pylops.signalprocessing.Radon2D(
    np.arange(ny),
    np.arange(nx),
    theta,
    kind=radoncurve,
    centeredh=True,
    interp=False,
    engine="numba",
    dtype="float64",
)

y = RLop.H * x

We can now first perform the adjoint, which in the medical imaging literature is also referred to as back-projection.

This is the first step of a common reconstruction technique, named filtered back-projection, which simply applies a correction filter in the frequency domain to the adjoint model.

xrec = RLop * y

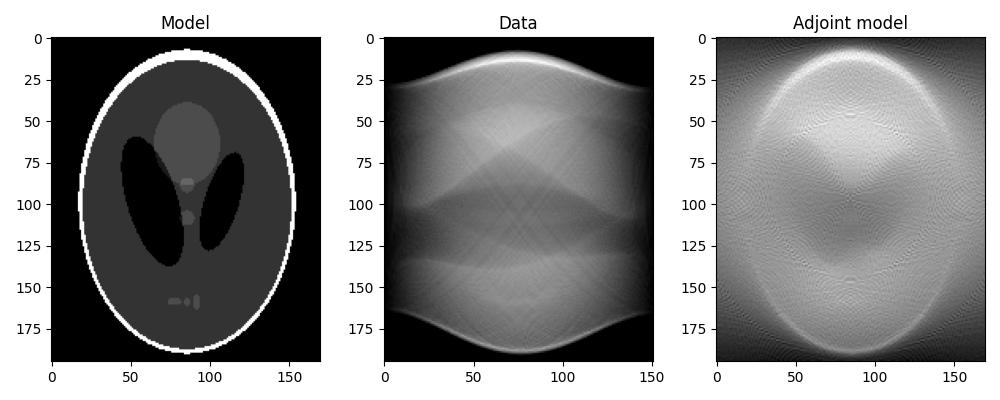

fig, axs = plt.subplots(1, 3, figsize=(10, 4))
axs[0].imshow(x.T, vmin=0, vmax=1, cmap="gray")
axs[0].set_title("Model")
axs[0].axis("tight")
axs[1].imshow(y.T, cmap="gray")
axs[1].set_title("Data")
axs[1].axis("tight")
axs[2].imshow(xrec.T, cmap="gray")
axs[2].set_title("Adjoint model")
axs[2].axis("tight")
fig.tight_layout()

Let’s now repeat the same exercise, this time using the CT2D operator

Cop = pylops.medical.CT2D((ny, nx), 1.0, ny, theta, engine='cpu')

y = Cop * x.T
xrec = Cop.H * y

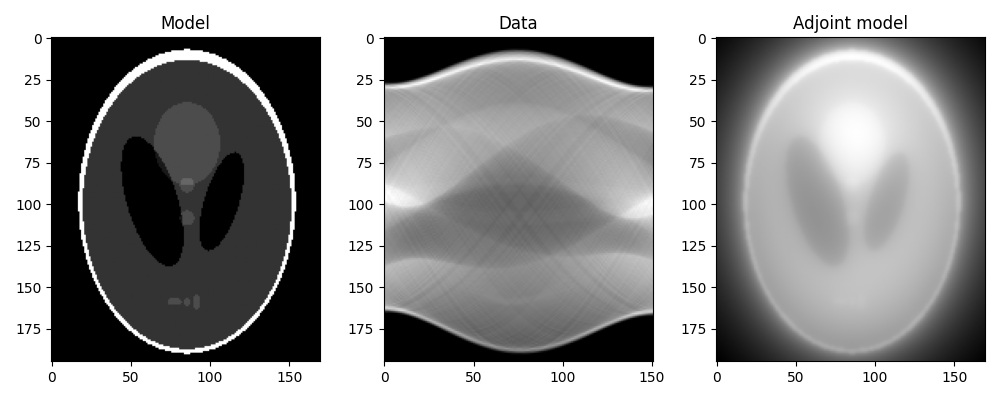

fig, axs = plt.subplots(1, 3, figsize=(10, 4))
axs[0].imshow(x.T, vmin=0, vmax=1, cmap="gray")
axs[0].set_title("Model")
axs[0].axis("tight")
axs[1].imshow(np.flipud(y.T), cmap="gray")
axs[1].set_title("Data")
axs[1].axis("tight")
axs[2].imshow(xrec, cmap="gray")
axs[2].set_title("Adjoint model")
axs[2].axis("tight")
fig.tight_layout()

Finally we take advantage of our different solvers and try to invert the modelling operator both in a least-squares sense and using TV-reg.

Dop = [
    pylops.FirstDerivative(
        (ny, nx), axis=0, edge=True, kind="backward", dtype=np.float64
    ),
    pylops.FirstDerivative(
        (ny, nx), axis=1, edge=True, kind="backward", dtype=np.float64
    ),
]
D2op = pylops.Laplacian(dims=(ny, nx), edge=True, dtype=np.float64)

# L2
xinv_sm = pylops.optimization.leastsquares.regularized_inversion(
    Cop, y.ravel(), [D2op], epsRs=[1e1], **dict(iter_lim=20)
)[0]
xinv_sm = np.real(xinv_sm.reshape(ny, nx)).T

# TV
mu = 1.5
lamda = [1.0, 1.0]
niter = 3
niterinner = 4

xinv = pylops.optimization.sparsity.splitbregman(
    Cop,
    y.ravel(),
    Dop,
    niter_outer=niter,
    niter_inner=niterinner,
    mu=mu,
    epsRL1s=lamda,
    tol=1e-4,
    tau=1.0,
    show=False,
    **dict(iter_lim=20, damp=1e-2)
)[0]
xinv = np.real(xinv.reshape(ny, nx)).T

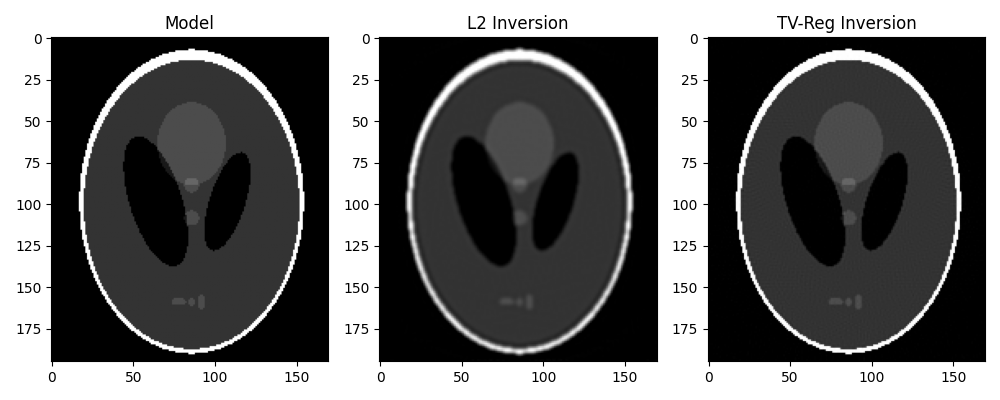

fig, axs = plt.subplots(1, 3, figsize=(10, 4))
axs[0].imshow(x.T, vmin=0, vmax=1, cmap="gray")
axs[0].set_title("Model")
axs[0].axis("tight")
axs[1].imshow(xinv_sm.T, vmin=0, vmax=1, cmap="gray")
axs[1].set_title("L2 Inversion")
axs[1].axis("tight")
axs[2].imshow(xinv.T, vmin=0, vmax=1, cmap="gray")
axs[2].set_title("TV-Reg Inversion")
axs[2].axis("tight")
fig.tight_layout()
